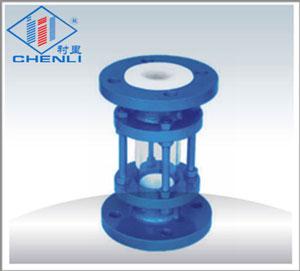

襯氟視蠱及管道附件 Accessories
產品特點：適合各種高腐蝕化學介質
■主要零件材料表 main part and material table
|
零件材料 part name |
|
不銹鋼 stainless steel |
|||
|
C |
P |
R |
PL |
RL |
|
|
殼體shell |
WCB |
CF8 |
CF 8M |
CF 3 |
CF 3M |
|
玻璃glass |
蹦硅玻璃 Borosilicate glass、鋼化玻璃Tempered glass、石英玻璃 Quartz glass |
||||
|
內襯材料 Lining material
|
FEP(F4)、PTFE(F4)、PFA(可溶性聚四氯乙烯）、PE（聚乙烯 |
||||
|
墊片 Gasket |
PTFE 聚四氯乙烯 |
||||
|
螺栓 bolt |
35 |
1Cr17Ni2 |
1Cr17Ni2 |
1Cr18Ni9 |
1Cr18Ni9 |
|
螺母 nut |
45 |
0Cr18Ni9 |
0Cr18Ni9 |
0Cr18Ni9 |
0Cr18Ni9 |
|
技術標準technical stand |
|
|
法蘭連接flange connection |
GB/T9113.1-2000asme |
|
公稱壓力 |
0.6、1.0、1.6、2.5Mpa Class150 |
|
適用壓力suitable pressure |
PN≤2.5MPa，工作壓力（working pressure）≤1.0MPa， 工作溫度視襯里材料（Working temperature depending on the lining material） |
|
基本型號/Basic model |
|
|
HGSO7F4-126管式 Tube type |
HGSO7F4-126管式Tube type |
|
HGSO7F4-101直通Straight-through |
HGSO7F4-101直通Straight-through |
|
HGSO7F4-115三通tee |
HGSO7F4-115三通Tee |
■主要尺寸Main dimension
| DN | D | D1 | D2 | F | B | Z-d | H | ||||||
| Mm | lnch | PN1.0Mpa | |||||||||||
| 15 | 1/2 | 95 | 96 | 65 | 45 | 3 | 4-14 | 160 | |||||
| 20 | 3/4 | 105 | 105 | 75 | 55 | 3 | 4-14 | 160 | |||||
| 25 | 1 | 115 | 115 | 85 | 65 | 3 | 4-14 | 200 | |||||
| 32 | 11/4 | 140 | 140 | 100 | 75 | 3 | 4-18 | 200 | |||||
| 40 | 11/2 | 150 | 150 | 110 | 85 | 3 | 4-18 | 200 | |||||
| 50 | 2 | 165 | 165 | 125 | 100 | 3 | 4-18 | 200 | |||||
| 65 | 21/2 | 185 | 185 | 145 | 120 | 3 | 8-18 | 220 | |||||
| 80 | 3 | 200 | 200 | 160 | 135 | 3 | 8-18 | 220 | |||||
| 100 | 4 | 220 | 220 | 190 | 155 | 3 | 8-22 | 220 | |||||
| 125 | 5 | 250 | 250 | 220 | 185 | 4 | 8-26 | 240 | |||||
| 150 | 6 | 285 | 285 | 250 | 210 | 4 | 8-26 | 300 | |||||
| 200 | 8 | 340 | 340 | 310 | 275 | 4 | 12-26 | 300 | |||||
| L | L1 | D | D1 | D2 | F | B | Z-d | H | |||||
| PN1.6Mpa | |||||||||||||
| 200 | 200 | 95 | 65 | 45 | 3 | 15 | 4-14 | 160 | |||||
| 200 | 200 | 105 | 75 | 55 | 3 | 17 | 4-14 | 160 | |||||
| 250 | 230 | 115 | 85 | 65 | 3 | 17 | 4-14 | 200 | |||||
| 250 | 230 | 140 | 100 | 75 | 3 | 19 | 4-18 | 200 | |||||
| 250 | 230 | 150 | 110 | 85 | 3 | 19 | 4-18 | 200 | |||||
| 250 | 230 | 165 | 125 | 100 | 3 | 21 | 4-18 | 200 | |||||
| 250 | 240 | 185 | 145 | 120 | 3 | 21 | 4-18 | 220 | |||||
| 250 | 240 | 200 | 160 | 135 | 3 | 22 | 8-18 | 220 | |||||
| 250 | 240 | 220 | 180 | 155 | 3 | 23 | 8-18 | 220 | |||||
| 250 | 250 | 250 | 210 | 185 | 4 | 24 | 8-18 | 240 | |||||
| 300 | 300 | 285 | 240 | 210 | 4 | 26 | 8-23 | 300 | |||||
| 300 | 300 | 340 | 295 | 265 | 4 | 26 | 12-23 | 300 | |||||
